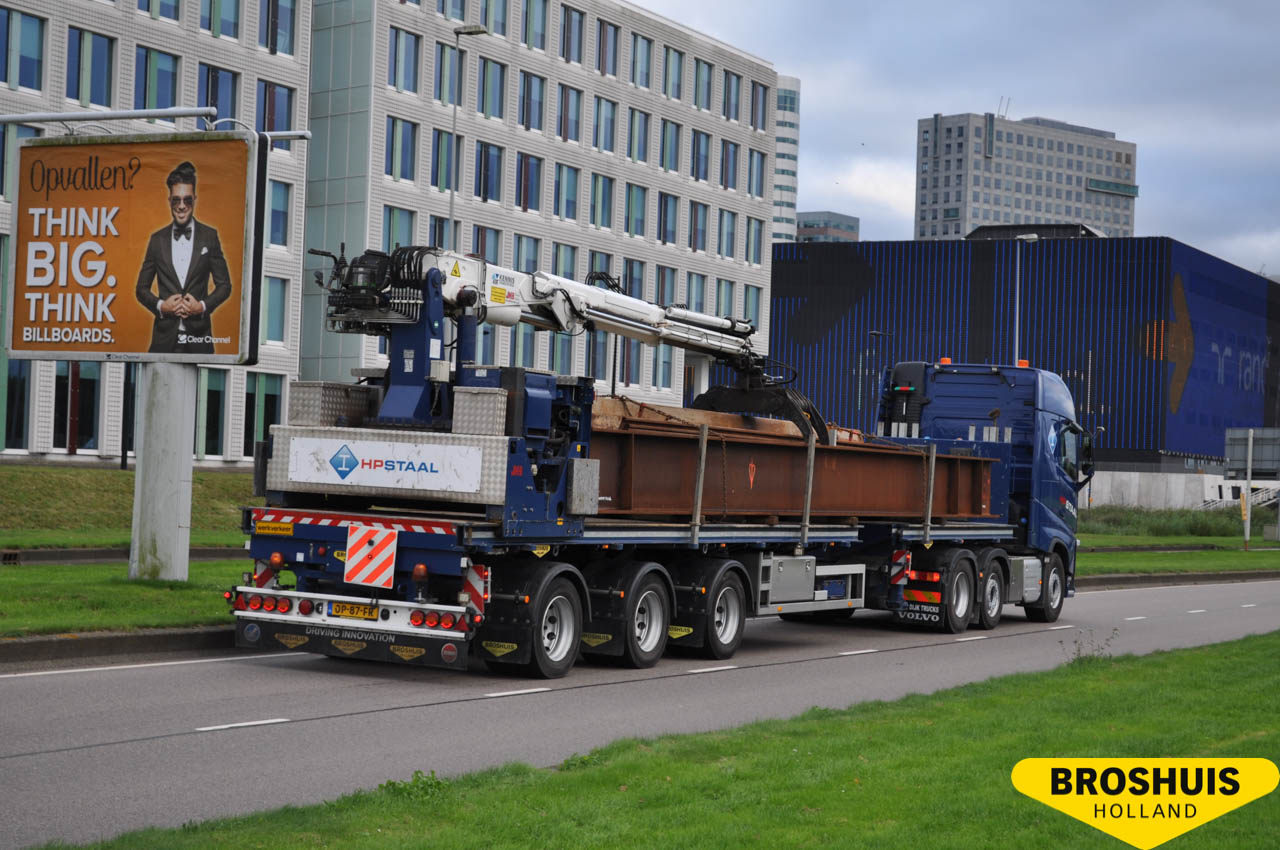

Flat semi-trailers

Type: 3-axle flat trailer (275 tires)
Kingpin load: 22,5 T
Bogie load: 30 T
Tare weight: 14,5 T
Payload: 38 T
Special options:
- Outward runner for movable folding crane integrated in the side bar which is making the driver self-sufficient. Due to the ability to load and unload yourself, waiting times for forklift or telecrane are avoided. It is also possible to unload outside the normal working hours of the recipient.
- Base frame under the loading floor with toolbox and open basket carrier to carry all required tools safe and dry.

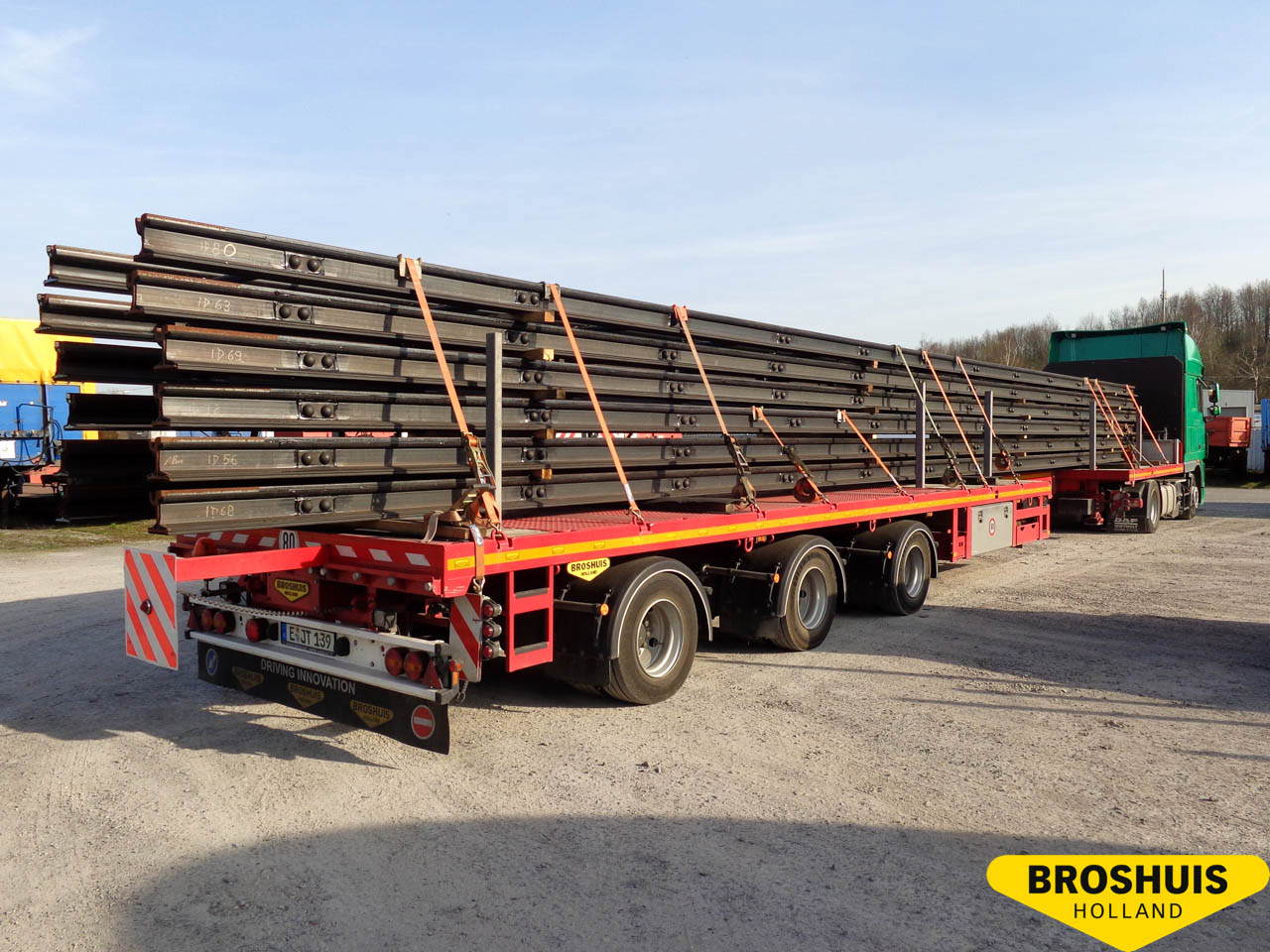

Type: 3-axle flat trailer (245 tires)
Kingpin load: 18 T
Bogie load: 30 T
Tare weight: 10,9 T
Payload 37,1 T
Special options:
- Small tires to reduce loading height. This makes this trailer suitable for long and high loads.
- Boltable U-ramp at the rear to load self-propelled machines
- Base frame under the loading floor with toolbox and open basket carrier to carry all required tools safe and dry.

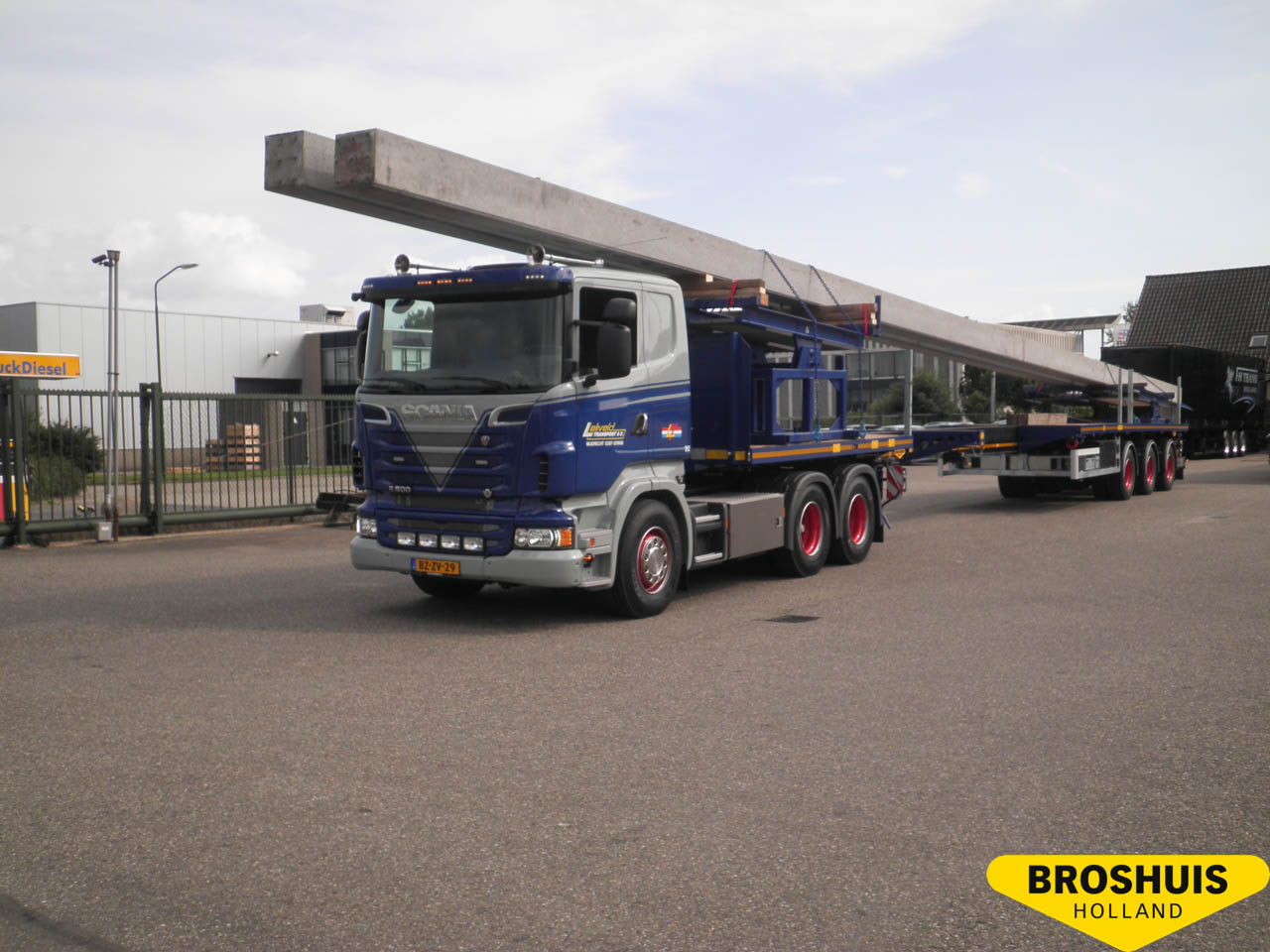

Type: 3-axle flat trailer (275 tires)
Kingpin load: 22,5 T
Bogie load: 30 T
Tare weight: 12,4 T
Payload: 40,1 T
Special options:
- Loading yoke to load over the truck cabin which makes it possible to shorten the transport length. This creates an advantage while unloading in urban areas.

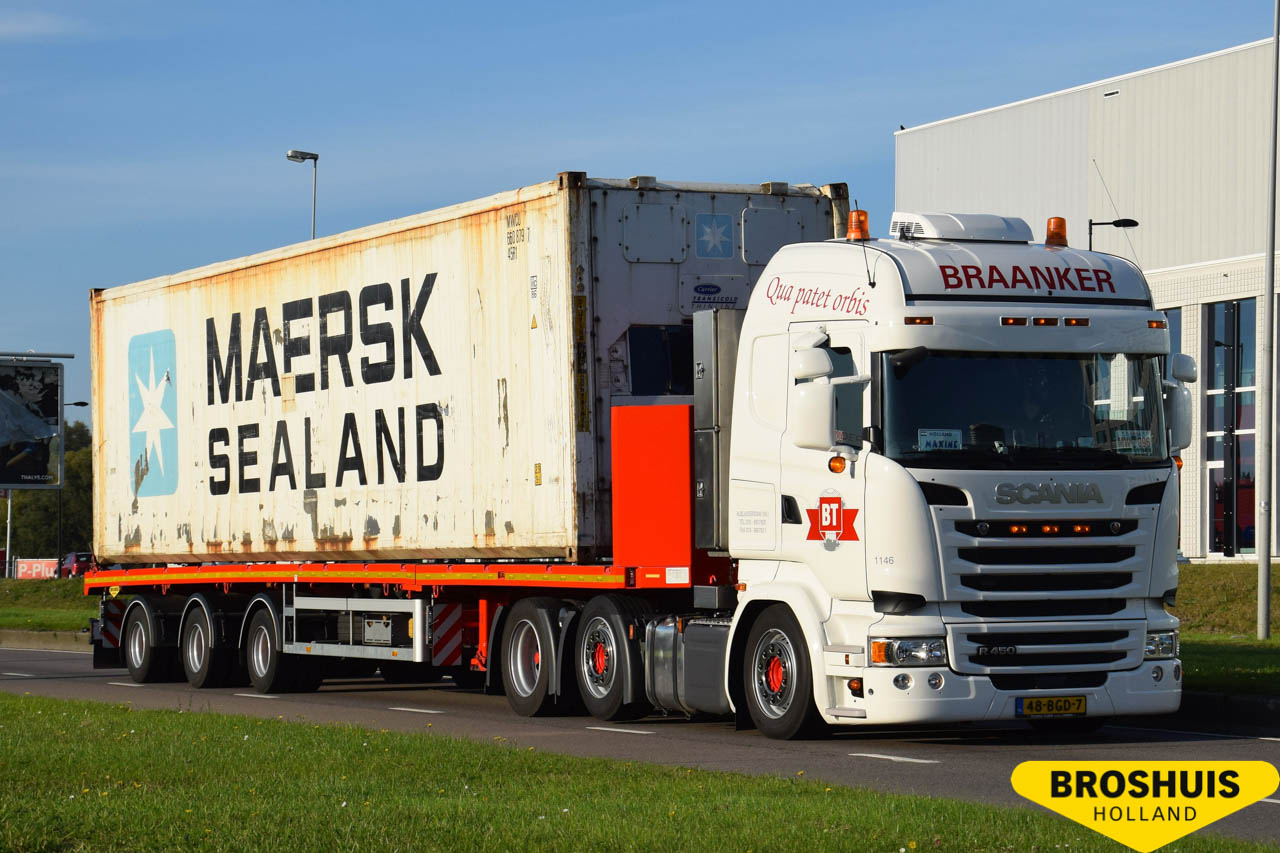

Type: 3-axle flat trailer (245 tires)
Kingpin load: 18 T
Bogie load: 30 T
Tare weight: 13,7 T
Payload: 34,3 T
Special options:
- Small tires to reduce loading height. This makes this trailer suitable for long and high loads.
- Integrated twistlocks to transport containers as well. Therefore the trailer can be multifunctional used.
- Headboard for to securing load.
- Base frame under the loading floor with spare wheel holder and open basket carrier.

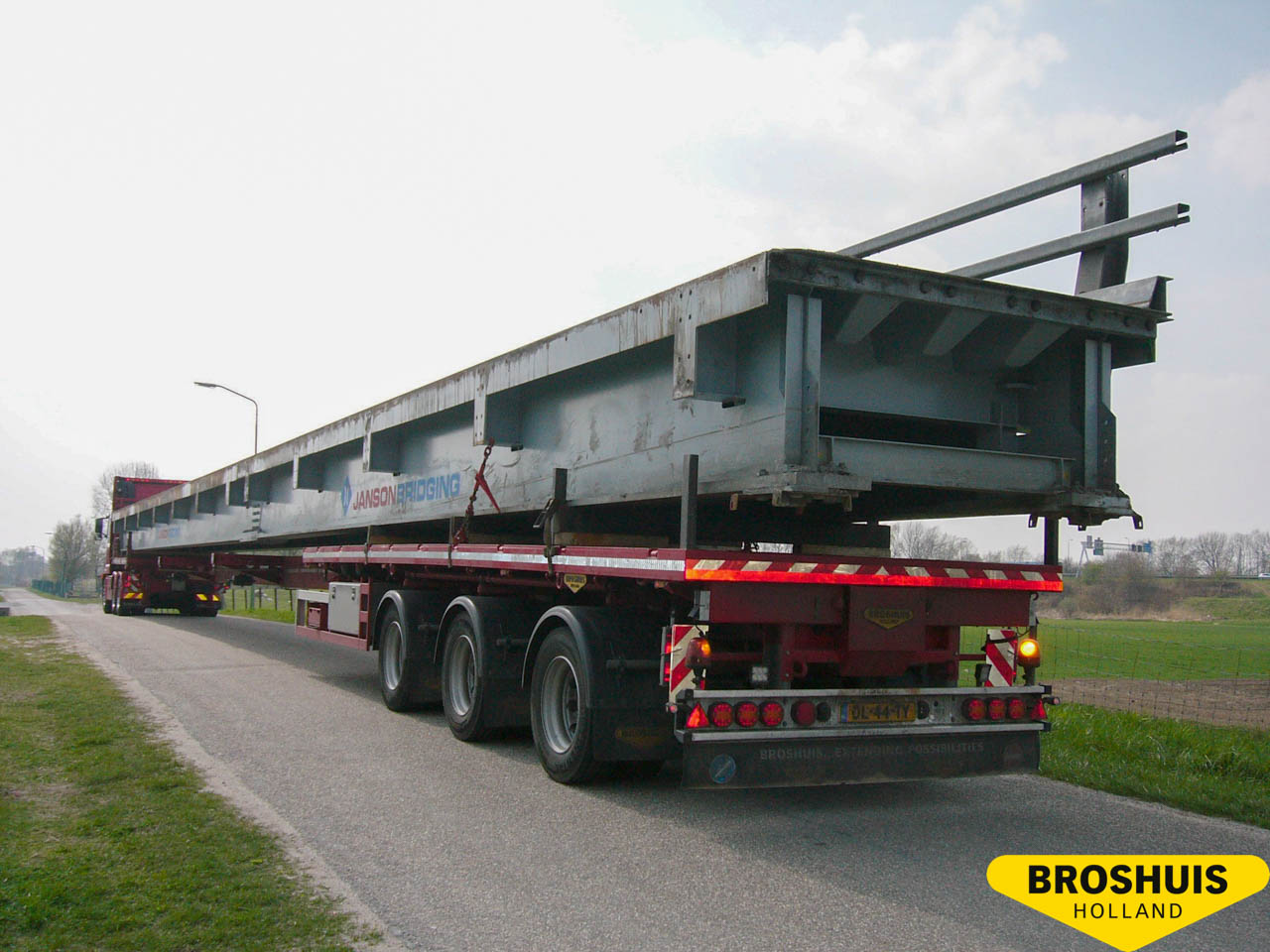

Type: 3-axle flat trailer (275 tires)
Kingpin load: 22,5 T
Bogie load: 30 T
Tare weight: 13 T
Payload: 39,5 T
Special options:
- "Standard" triple, to transport long loads as universally as possible.
- Base frame under the loading floor with toolbox and open basket carrier to carry all required tools safe and dry.

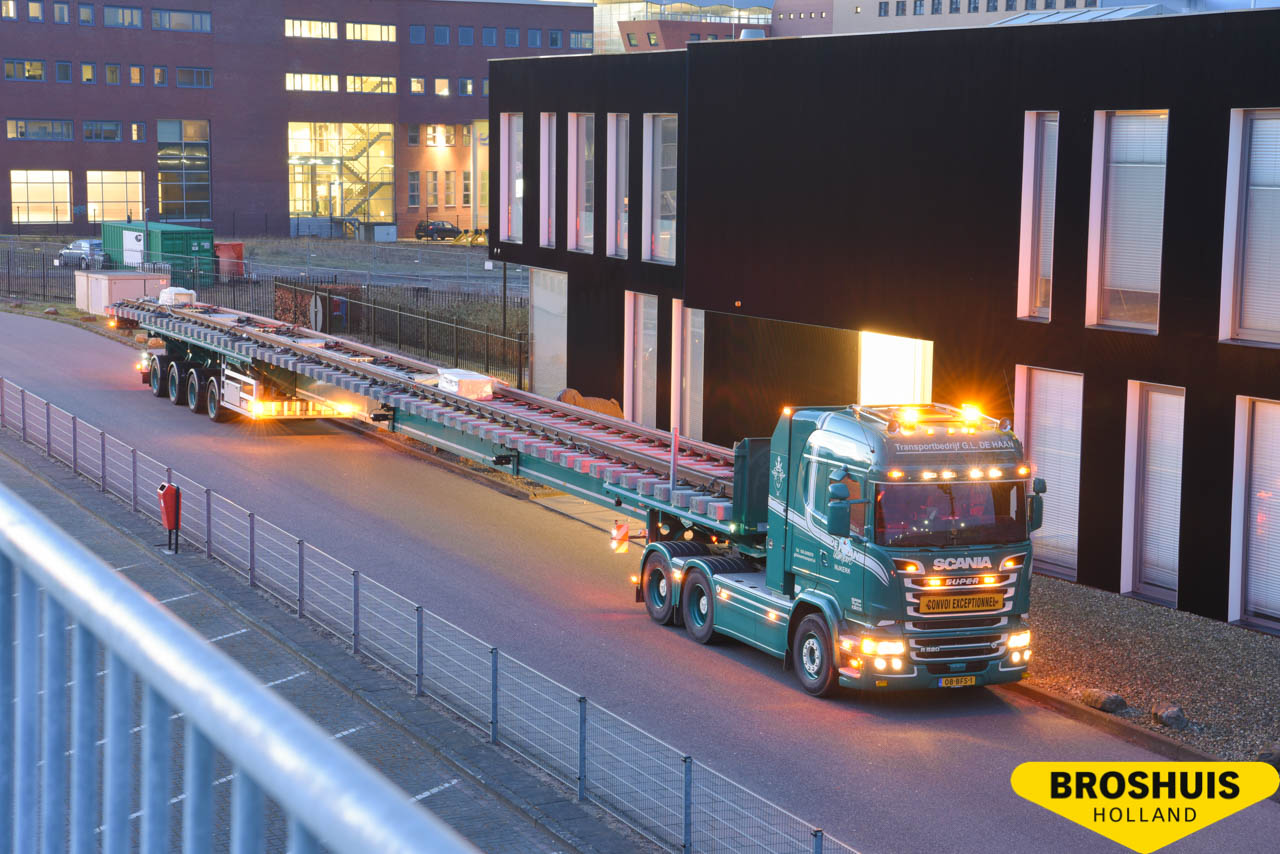

Type: 4-axle flat trailer (275 tires)
Kingpin load: 22,5 T
Bogie load: 40 T
Tare weight: 22,9 T
Payload: 39,6 T
Special options:
- Special beam for transporting rail tracks. These railtracks are not allowed to bend so the beam needs to be stiff.
- Base frame under the loading floor with toolbox and open basket carrier to carry all required tools safe and dry.
- Stake pocket frame on each side of the trailer under the side bar to store stake pockets.
- TUV certificated headboard.

Type: 6-axle not extendable flat trailer (385 tires)
Kingpin load: 22,5 T
Bogie load: 66 T
Tare weight: 16 T
Payload: 72,5 T
Special options:
- Not extendable, special for transporting crane ballast
- 1st axle selftracking, 2nd axle fixed and axle 4 up until 6 hydraulic steered.
- Single mounting tires (max. 10 T pro axle) for more favorable fuel consumption.

Type: 6-axle not extendible flat trailer (385 tires)
Kingpin load: 22,5 T
Bogie load: 66 T
Tare weight: 15,8 T
Payload: 72,7 T
Special options:
- Not extendable, special for transporting crane ballast
- 1st axle selftracking, 2nd axle fixed and axle 4 up until 6 hydraulic steered.
- Single mounting tires (max. 10 T pro axle) for more favorable fuel consumption.
